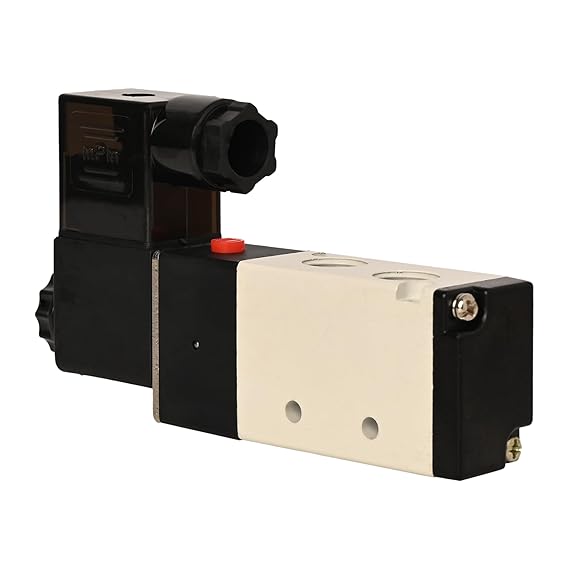

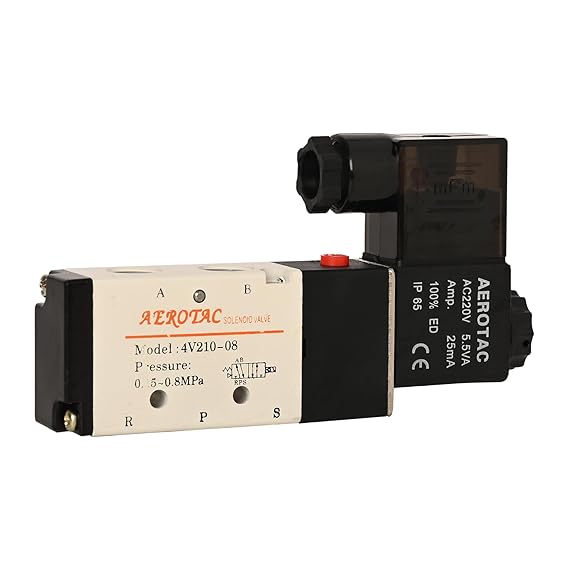

The HYCO 4V210-08 Pneumatic Solenoid Valve is a high-quality directional control valve designed for efficient and reliable airflow management in industrial pneumatic systems. Featuring a 5/2-way single electrical control design, this valve provides accurate control of compressed air flow for operating pneumatic cylinders, actuators, and automation equipment.

Built with a precision-engineered aluminum alloy valve body, the HYCO solenoid valve offers excellent durability, strong pressure resistance, corrosion protection, and efficient heat dissipation. Its lightweight yet robust construction ensures dependable performance even in continuous industrial environments.

The valve operates using an AC 24V electromagnetic control system with an internally piloted acting mechanism, providing fast response and smooth switching operation. It supports a working pressure range of 0.15–0.8 MPa (1.5–8 kgf/cm²), making it suitable for various pneumatic applications requiring consistent air control.

Featuring 1/4-inch PT threaded inlet, outlet, and exhaust connections, the HYCO 4V210-08 allows easy integration with standard pneumatic pipelines and fittings. The high-frequency solenoid design ensures reliable operation with quick response for automation systems.

This single control pneumatic valve is widely used for controlling small pneumatic cylinders, pilot-operated valves, industrial automation equipment, packaging machines, manufacturing systems, and air pressure control applications.

For best performance, proper airflow direction and correct port connections should be maintained during installation. Installing a muffler on the exhaust port is recommended to reduce noise and protect the pneumatic system.

Key Features

• Single electrical control pneumatic solenoid valve
• 5/2 way directional control design
• Model: 4V210-08
• Operates on AC 24V
• High-quality aluminum alloy construction
• Strong pressure resistance and corrosion protection
• Internally piloted operation
• Fast response electromagnetic coil
• Working pressure: 0.15–0.8 MPa
• Standard 1/4-inch PT threaded ports
• Suitable for pneumatic cylinders and automation systems
