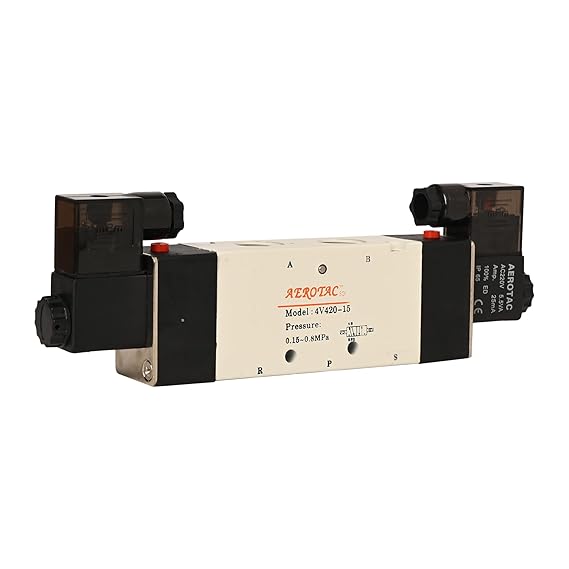

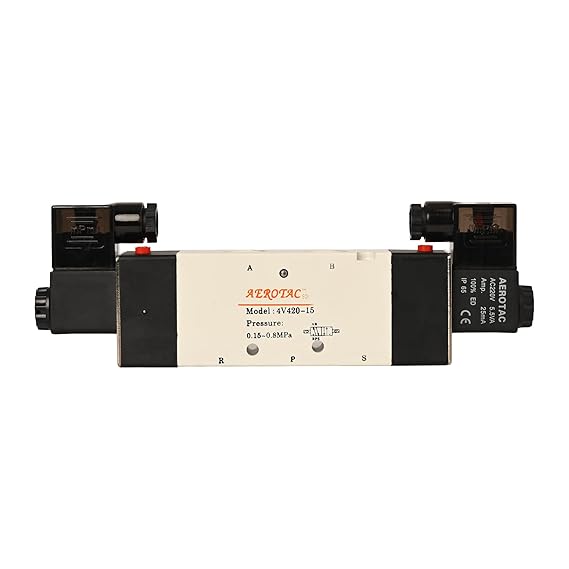

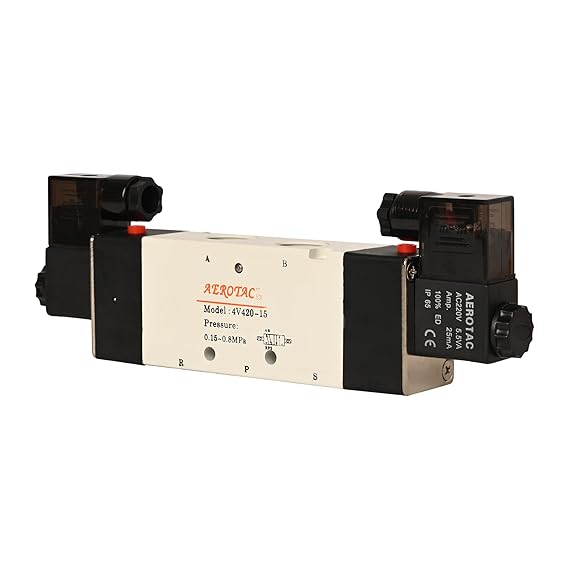

The HYCO Double Solenoid Valve Air Control Pneumatic Valve (4V420-15) is a high-performance directional control valve designed for efficient airflow management in industrial pneumatic systems. Featuring a 5/2-way double solenoid configuration, this valve provides accurate and reliable control of compressed air for double-acting cylinders and automated machinery.

Constructed from premium aluminum alloy, the valve body offers excellent pressure resistance, corrosion protection, and efficient heat dissipation. Its precision-machined design ensures smooth operation, high durability, and a long service life even in demanding industrial environments.

Operating on AC 24V, the valve supports a working pressure range of 0.15–0.8 MPa (1.5–8 kgf/cm²) and uses an internally piloted mechanism for fast and dependable switching performance. The high-frequency electromagnetic coil provides rapid response, making it ideal for continuous industrial automation applications.

The valve features a 1/2-inch inlet connection with standard PT-threaded ports for quick integration into existing pneumatic systems. It is suitable for controlling double-acting pneumatic cylinders, air actuators, pilot-operated systems, packaging machinery, production equipment, CNC machines, textile machinery, and industrial automation lines.

For optimal performance, proper airflow direction should be followed during installation, and installing a muffler on the exhaust port is recommended to reduce operating noise and protect the pneumatic system.

Key Features

• 5/2-way double solenoid pneumatic valve
• Model: 4V420-15
• Operates on AC 24V
• High-quality aluminum alloy body
• Corrosion-resistant and durable construction
• Fast-response electromagnetic coil
• Internally piloted operation
• Working pressure: 0.15–0.8 MPa
• Standard PT threaded connections
• Suitable for double-acting pneumatic cylinders
• Reliable performance for industrial automation
